Zonda XL

Overview

Zonda XL Terracotta Sunscreen Baguette

Zonda® XL is a rectangular terracotta sunscreen.

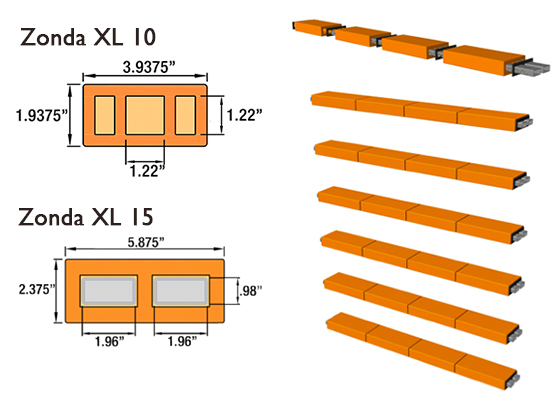

Zonda XL Terracotta Sunscreen Module

Typically installed in assemblies of three to five pieces with or without rubber spacers between. With multiple pieces per blade, colors can be mixed to create subtle to striking effect.

Standard Physical Characteristics

Terracotta Size (IN)
Terracotta Size (MM)
Terracotta Unit Weight (LBS/LF)
Terracotta Unit Weight (KG/LM)
Typical Assembly Weight (LBS/LF)
Typical Assembly Weight (KG/LM)
(Zonda XL 10) 1.97" x 3.94" x 48" 50mm x 100mm x upto 1200mm 4.4 lbs/LF 6.6 kg/LM 5.9 lbs/LF 8.8 kg/LM
(Zonda XL 15) 1.97" x 5.91" x up to 48" 50mm x 150mm x upto 1200mm 6.6 lbs/LF 9.8 kg/LM 8.6 lbs/LF 12.8 kg/LM

Installation

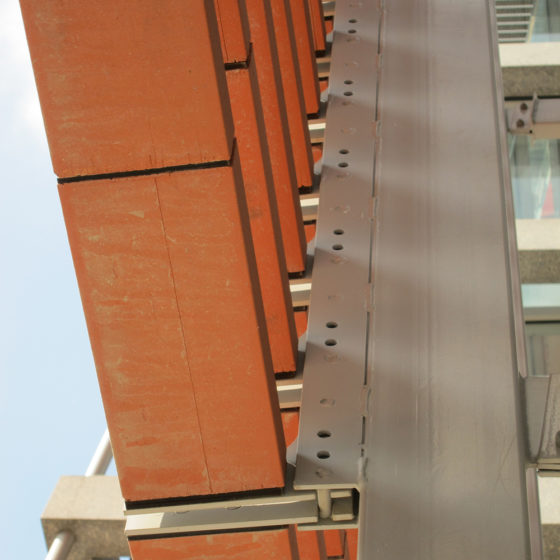

Sunscreen systems are generally designed to fit project specific parameters such as spacing, wind load, sunscreen effect and other engineering or architectural requirements. Contact Terreal North America for assistance in selecting a system for your project. Below are installation photos of Zonda® XL terracotta sunscreens.

TERREAL Sunscreen Installation Video

Details

Sunscreen systems are generally designed to fit project specific parameters such as spacing, wind load, sunscreen effect and other engineering or architectural requirements. Contact Terreal North America for assistance in selecting a system for your project. Below are details of our basic Zonda® XL system. Zonda XL baguettes can be installed with or without rubber spacers between the baguettes.

Details
. Zonda XL Detail 1: Typical Horizontal Section Using Maestral Attachment System
. Zonda XL Detail 1: Typical Vertical Section Using Maestral Attachment System

Colors & Finishes

Zonda® XL terracotta baguettes are available in a variety of through-body colors, as well as glazed finishes. Terreal North America can develop custom colors with through-body terracotta or matte, semi-gloss, gloss, or metallic glaze applications.

Standard Through-Body Colors
01 Red
02 Red Orange
03 Champagne
04 Salmon
06 Sand
07 Sienna
09 Coffee Brown
10 Chalk White
11 Sahara Beige
12 Light Grey
13 Storm Grey
15 Slate Grey
Standard Glaze Colors
Calamine Pink
Cobalt Blue
Glaze Red
Glossy Black
Glossy White
Green
Lichen
Marine Black
Mars Red
Matte Black
Matte Light Grey
Matte White
Orange
Petrol Blue
Shadow Earth
Steel
Verdigris
Violet
Yellow
Standard Finishes
Smooth

Learn More about Zonda XL

Terreal North America’s expert technical team can help you design an innovative Zonda® XL sunscreen solution for your next project.
