NeXclad 16


NeXclad Small Module Terracotta Cladding

NeXclad 16 is a single-skin, small module terracotta cladding system available in a variety of surface textures and boundless color possibilities. NeXclad 16 can be installed directly to wall sheathing or in a rainscreen application. Available with a variety of corner options – and exact field tile color matching for a harmonious finish.  This small module terracotta tile’s ease of installation provides an economical cladding solution – while preserving the integrity of the building’s design aesthetic.  NeXclad offers an industry leading 75-year material warranty, including color.


  • Simple easy to install systems
  • Unparalleled custom color capability
  • Framing systems available for all types of wall construction including framed walls, hard walls, walls with and without exterior insulation, walls with continuous insulation needs, etc.
  • Complete framing system and design can be supplied by Terreal North America
  • System wind load testing, impact testing, and ASTM performance testing available

Standard Physical Characteristics

*Other terracotta panel modules are available pending review of project scope. Please contact us for details.
Center to Center Modules (IN)
Center to Center Modules (MM)
Panel Size (IN)
Panel Size (MM)
Terracotta Panel Weight (LBS)
Terracotta Panel Weight (KG)
10.125" x 13" 10.75" x 16" x .875" 7.53 lbs/sq ft

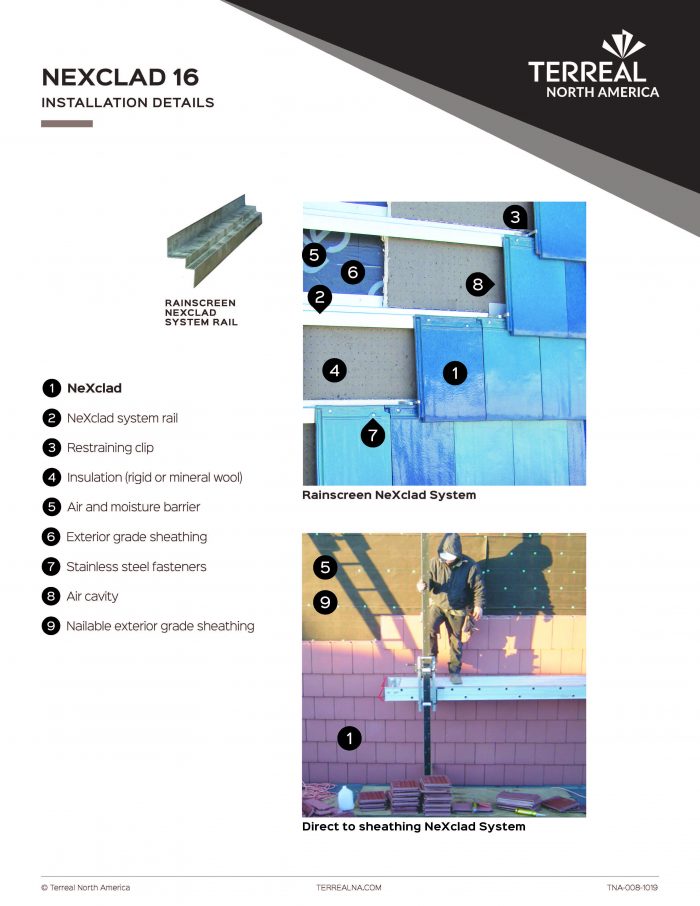

NeXclad 16 can be installed directly to the wall sheathing or as the finish material in a rainscreen application.


Nexclad 16

Installation Guide


Framed Wall Details
Solid Wall Details
. 1. NeXclad 16 Direct-to-Sheathing - NC16-201s - BASE OF RAINSCREEN SECTION dwg
. 2. NeXclad 16 Direct-to-Sheathing - NC16-003s - TYPICAL INSTALLATION SECTION dwg
. 3. NeXclad 16 Direct-to-Sheathing - NC16-202s - WINDOW SILL SECTION dwg
. 4. NeXclad 16 Direct-to-Sheathing - NC16-203s - WINDOW HEAD SECTION dwg
. 5. NeXclad 16 Direct-to-Sheathing - NC16-205s - PARAPET COPING SECTION dwg
. B. NeXclad 16 Direct-to-Sheathing - NC16-102As - EXTERNAL CORNER - 'V' CORNER TILE dwg
. B. NexClad 16 Direct-to-Sheathing - NC16-102AS - EXTERNAL CORNER - COURSING TILE
. C. NeXclad 16 Direct-to-Sheathing - NC16-103s - INTERNAL CORNER dwg
. D. NeXclad 16 Direct-to-Sheathing - NC16-105s - TERMINATION OF RAINSCREEN DETAIL dwg
. E. NeXclad 16 Direct-to-Sheathing - NC16-110As - WINDOW JAMB DETAIL - METAL TRIM dwg
. . Zip file of all NeXclad 16 details dwg

Colors & Finishes

NeXclad is manufactured in New Lexington, Ohio by Ludowici. Ludowici’s high-temperature firing technique results in a beautiful range of tones within a color blend. These color chips are intended to impart the range within each color blend.

Standard Through-Body Color
Clay Red

NeXclad glazes come in single and multiple spray options, creating a narrow or wide color range across the visual field. Custom color blends can also be created by request.

Standard Glaze Colors
Midnight Black (Gloss)
Brookville Green (Gloss)
Royal Persian (Gloss)
Mediterranean Blue (Gloss)
Sunset Red (Weathered)
Beach Brown (Weathered)
Lava Black (Weathered)
Matte White
Barcelona Buff
Desert Sand
Slate Red
Process Flash
Summer Rose
Bright Green
Vintage Green
Empire Green
Forest Green
Briar Brown
Aged Cedar
Aged Oak
Brunswick Black
Ash Gray
Antiqued Pewter
Antiqued Slate Gray
Antiqued Montpelier Green
Antiqued Brunswick Black
Terra Cotta
Dark Terracotta
Dark Tuscany
Western Cedar
Vermont Gray Black
Earth Gray
Ebony Mist
Slate Gray
Montpelier Green
Mottled Green Purple
Strata Gray
Standard Finishes



Americana: a lightly pressed bark texture
Classic: a genteel smooth texture
Lanai: a sandblasted, slightly weathered texture
Williamsburg: a light wood shake texture
Lexington Slate: a deep quarried slate texture (14″; 10-1/2″; and 7-1/2″ wide X 7-1/2” vertical exposures)
Century Shake: a rugged wood shake texture (10” wide; 6-11/16″ wide; and 5″ wide X 11-1/2” vertical exposures)
LudoShake: a hand split wood shake texture (NeXclad 16 only)
LudoSlate: a mild slate texture (NeXclad 16 only)


  • ASTM C1167 Breaking Load Test – Glazed
  • ASTM C1167 Efflorescence Test – Glazed
  • ASTM C1167 Freeze-Thaw Test – Glazed
  • ASTM C1167 Permeability Test – Glazed
  • ASTM C1167 Thermal Shock Resistance Test – Glazed
  • Wind Load Test over Armoroc
  • Wind Load Test over Plywood



Contact us for certification documentation


Learn More About NeXclad

Terreal North America’s expert technical team can help you design an innovative NeXclad solution for your building.

Last Updated: 6/5/2023
