Autan

Overview

Autan Terracotta Sunscreen Baguette

Autan® is a small, economical, square sunscreen terracotta baguette. It can be installed vertically or horizontally to protect from sunlight or to decorate façades. Autan baguettes accommodate all types of projects and offer many options to express unique architectural perspectives.

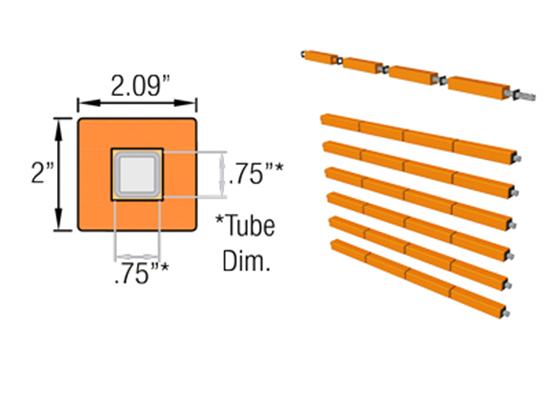

Autan Terracotta Sunscreen Module

Autan® is typically installed in assemblies of three to five pieces with or without rubber spacers between. With multiple pieces per blade colors, it can be mixed to create subtle to striking effect.

Standard Physical Characteristics

Terracotta Size (IN)
Terracotta Size (MM)
Terracotta Unit Weight (LBS/LF)
Terracotta Unit Weight (KG/LM)
Typical Assembly Weight (LBS/LF)
Typical Assembly Weight (KG/LM)
2.09" x 2.0" x 11" 2.64 lbs

Installation

Sunscreen systems are generally designed to fit project specific parameters such as spacing, wind load, sunscreen effect and other engineering or architectural requirements. Contact Terreal North America for assistance in selecting a system for your project. Below are installation photos of Autan terracotta sunscreens.

TERREAL Sunscreen Installation Video

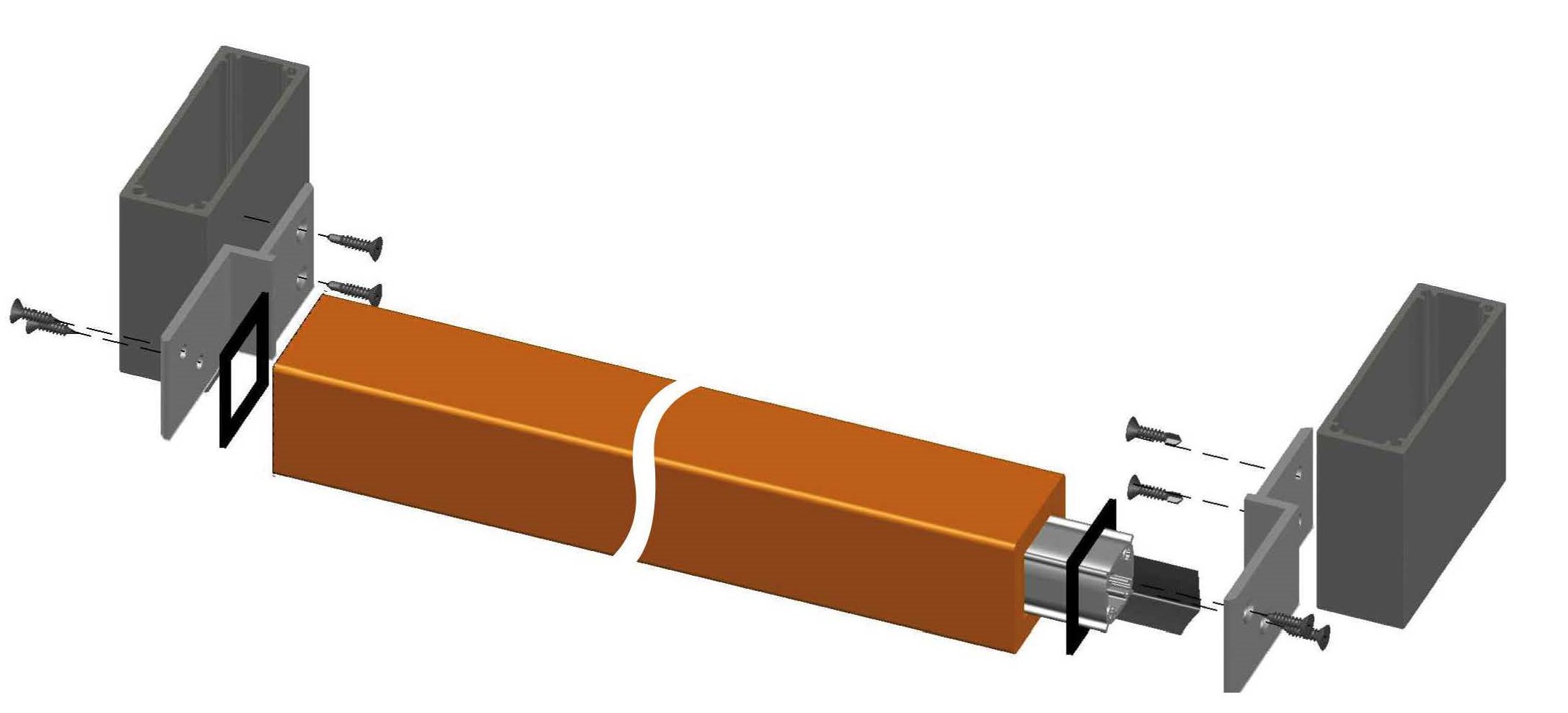

Details

Sunscreen systems are generally designed to fit project specific parameters such as spacing, wind load, sunscreen effect and other engineering or architectural requirements. Contact Terreal North America for assistance in selecting a system for your project. Below are details of our basic Autan system. Autan baguettes can be installed with or without rubber spacers between the baguettes.

Autan Sunscreen Typical Details

Details
. Autan Detail 1: Typical Horizontal Section Using Maestral Attachment System
. Autan Detail 2: Typical Horizontal Section Using Maestral Attachment System
. Autan Detail 3: Typical Vertical Section Using Maestral Attachment System
. Autan Detail 4: Alternate Attachment Bracket
. Autan Detail 5: Typical Vertical Section of Attachment at Concrete Slab Edge

Colors & Finishes

Autan® terracotta baguettes are available in a variety of through-body colors, as well as glazed finishes. Terreal North America can develop custom colors with through-body terracotta or matte, semi-gloss, gloss, or metallic glaze applications.

Standard Through-Body Colors
RQ-Beige
RQ-Brown
RQ-Champagne
RQ-Ebony
RQ-Pearl Grey
RQ-Pink
RQ-Red
RQ-Red-Orange
RQ-Stone
RQ-Violine
Standard Glaze Colors
Calamine Pink
Cobalt Blue
Glaze Red
Glossy Black
Glossy White
Green
Lichen
Marine Black
Mars Red
Matte Black
Matte Light Grey
Matte White
Orange
Petrol Blue
Shadow Earth
Steel
Verdigris
Violet
Yellow
Standard Finishes
Smooth

Learn More about Autan

Terreal North America technical experts can help you design an innovative Autan sunscreen system for your next project.
