Piterak Slim Terracotta Cladding Panel

Piterak® Slim is a 30mm thick, double-skin terracotta rainscreen cladding system with overlapping horizontal reveals. The system contains a large module terracotta panel available in a variety of standard sizes and a multitude of made-to-order sizes with a maximum height of 2′-0″ and maximum length of 6′-0″. Panels are furnished in lengths required for your project or they may be cut by the installation contractor for specific field conditions.

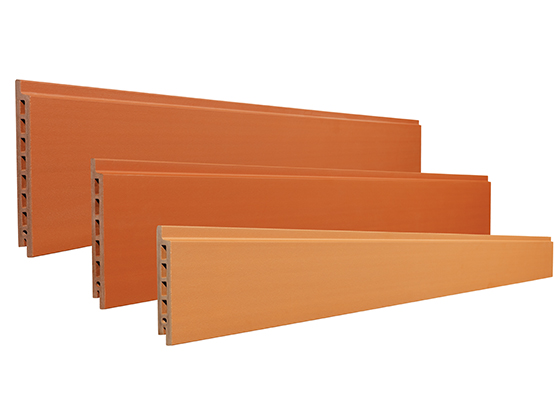

Piterak Slim Terracotta Cladding

Piterak® Slim provides excellent structural load performance that is equivalent to thicker terracotta panels while providing a slender profile and minimal material weight. The system provides high wind resistance and the highest (Q4) impact resistance rating under French CSTB (an ICC Construction Product Evaluation Expert Alliance member) standards.

The terracotta cladding panels are supported by our engineered rainscreen support framing system and stainless-steel installation clips. Piterak® Slim is a terracotta cladding system that provides structural versatility and superior aesthetics in an economical rainscreen solution.

Standard Physical Characteristics

*Exact US Imperial modules for ease of construction layout and installation. Metric dimension terracotta panels are available.
Center to Center Modules (IN) Center to Center Modules (MM)	Panel Size (IN) Panel Size (MM)	Terracotta Panel Weight (LBS) Terracotta Panel Weight (KG)
8" x 60" 203mm x 1524mm	8.55" x 59.5" x 1.18" 217mm x 1511mm x 30mm	10 lbs/sq ft 48.8 kgs/m2
12" x 60" 305mm x 1524mm	12.55" x 59.5" x 1.18" 319mm x 1511mm x 30mm	10 lbs/sq ft 48.8 kgs/m2
18" x 60" 457mm x 1524mm	18.55" x 59.5" x 1.18" 417mm x 1511mm x 30mm	10 lbs/sq ft 48.8 kgs/m2
24" x 60" 609mm x 1524mm	24.55" x 59.5" x 1.18" 624mm x 1511mm x 30mm	10 lbs/sq ft 48.8 kgs/m2

Installation

Piterak® Slim is a complete rainscreen system consisting of terracotta cladding panels, stainless-steel installation clips, and metal rainscreen framing components.

Piterak Slim Installation Video

https://youtu.be/HmVP1cOxh88

Piterak Slim Installation Photos

Standard Installation Details
Wall Base and Parapet
Corner Details
Horizontal Installation

Adjustable wall brackets for vertical support member attachment being installed
Horizontal Installation

Vertical support member installed to wall bracket
Horizontal Installation

Vertical support member installed at vertical panel reveal
Horizontal Installation

Regular clip installation
Horizontal Installation

Regular clip installed
Horizontal Installation

Finished Installation
Vertical Installation

Horizontal aluminum hat channels installed into steel framing with exterior insulation partially installed
Vertical Installation

Starter clips installed at base
Vertical Installation

Typical clips installed at a factory mitered corner panel
Vertical Installation

Start of panel installation
Vertical Installation

Panel installation proceeds
Vertical Installation

Window trim detail
Vertical Installation

Finished installation

Details

Below is a typical installation diagram. Corresponding details can be downloaded via the detail references shown. Revit BIM content is available upon request.

Detail of a Typical Piterak Slim Rainscreen Installation

Framed Wall Details		Solid Wall Details
A. VERTICAL REVEAL PLAN DETAIL		.
B. MITERED OUTSIDE CORNER DETAIL		.
C. INSIDE CORNER		.
D. TERMINATION OF RAINSCREEN DETAIL		.
E. WINDOW JAMB DETAIL		.
1. BASE OF RAINSCREEN SECTION		.
2. TYPICAL INSTALLATION SECTION		.
3. WINDOW SILL SECTION		.
4. WINDOW HEAD SECTION		.
6. PARAPET - TERRACOTTA COPING SECTION		.
6. PARAPET COPING SECTION		.
7. SOFFIT EXTERIOR CORNER SECTION		.
8. SOFFIT REVEAL JOINT		.
9. SOFFIT INTERIOR CORNER SECTION		.
. zip file for all Piterak Slim details		.

Colors & Finishes

Piterak® Slim terracotta panels are available in a variety of through-body colors, as well as glazed finishes. Terreal North America can develop custom colors with through-body terracotta or matte, semi-gloss, gloss, or metallic glaze applications.

Standard Through-Body Colors

01 Red

02 Red-Orange

03 Champagne

04 Salmon

06 Sand

07 Sienna

09 Coffee

11 Sahara Beige

12 Light Grey

13 Storm Grey

15 Slate Grey

16 Ebony

30 Arctic White (Engobe)

Standard Glaze Colors

Calamine Pink

Cobalt Blue

Red

Glossy Black

Glossy White

Green

Lichen

Mars Red

Marine Black

Matte Black

Matte White

Matte Light Grey

Orange

Petrol Blue

Sahara Beige

Shadow Earth

Steel

Verdigris

Egyptian Violet

Yellow

Standard Finishes

Smooth

Brushed

Fine-Ridged

Grooved

Ridged

Certification

Piterak Slim has been tested and received certifications for the following:

French CSTB Technical Approval
Breaking Load Test
Freeze-Thaw Test – Champagne Clay Base
Freeze-Thaw Test – Red Clay Base
Efflorescence Test
Water Absorption Test
Impact Test – 25cm module
Impact Test – 30cm module
Wind Load Test – 25cm module
Wind Load Test – 30cm module
EPD
Seismic Performance – Approved for French categories zone IV, buildings 4 with insulation 240mm max
